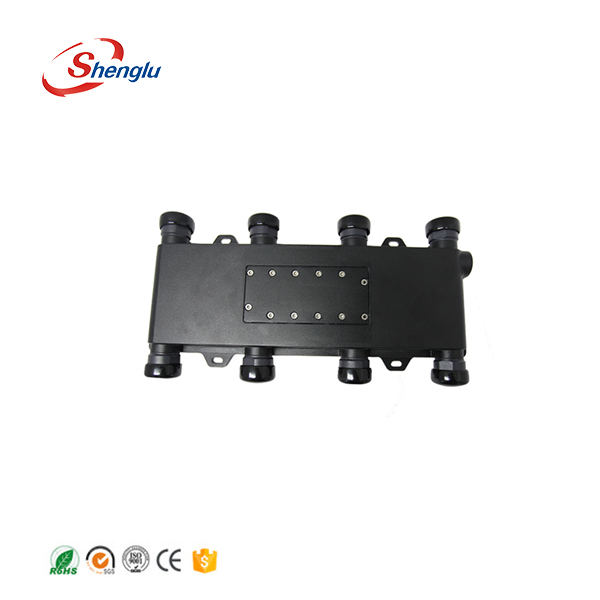

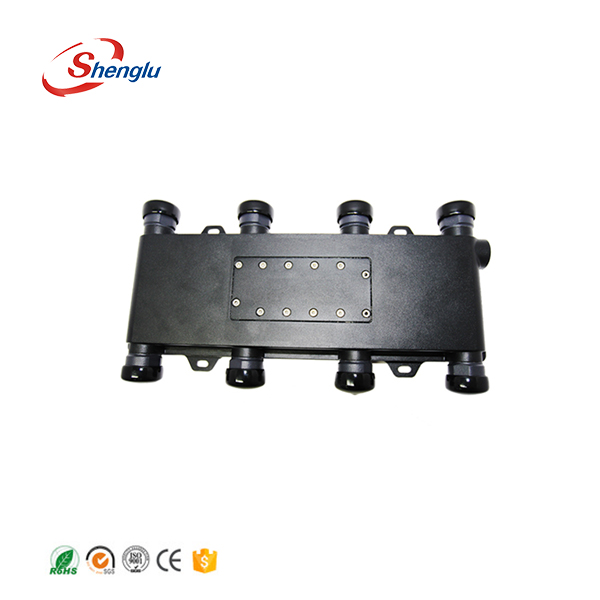

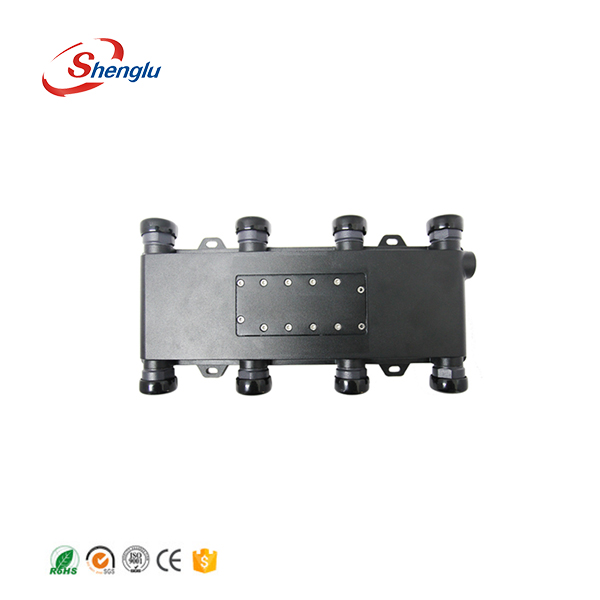

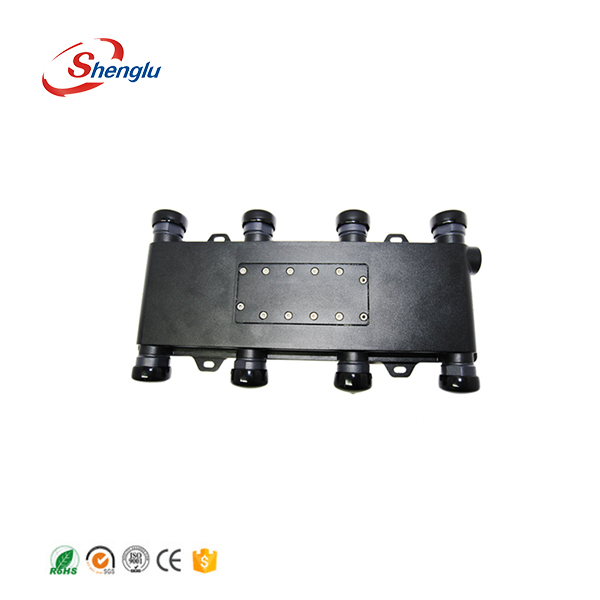

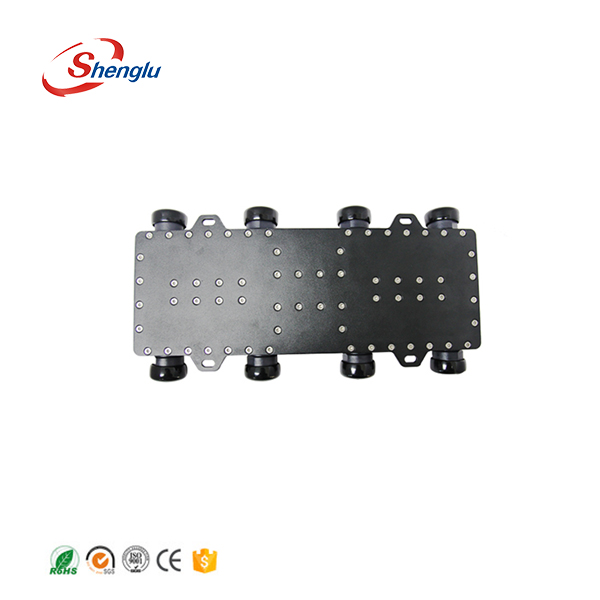

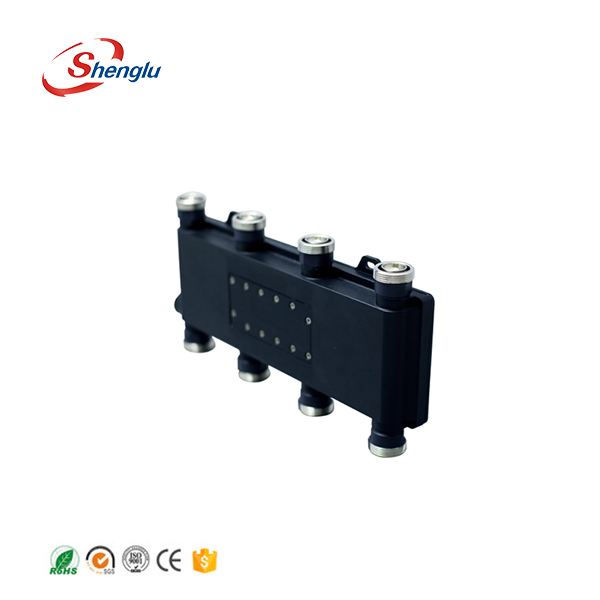

SL25451D
Wide Frequency Band 694-2700MHz
Low Passive Intermodulation(-160dBc)
Low VSWR & Insertion Loss
Widely used for In-building Solutions
Model No.
Freq(MHz) 694-2700
Coupling(dB) 6.1±1
Isolation(dB) ≥25
VSWR ≤1.25
PIM(dBc) ≤-160dBc@2*43dBm
Power(W) 4*200 (average)
Impedance 50 ohm
Connector 4.3-10 Female / DIN-Female
Temp(deg) -40~+65
Application Indoor or Outdoor, IP66
-
