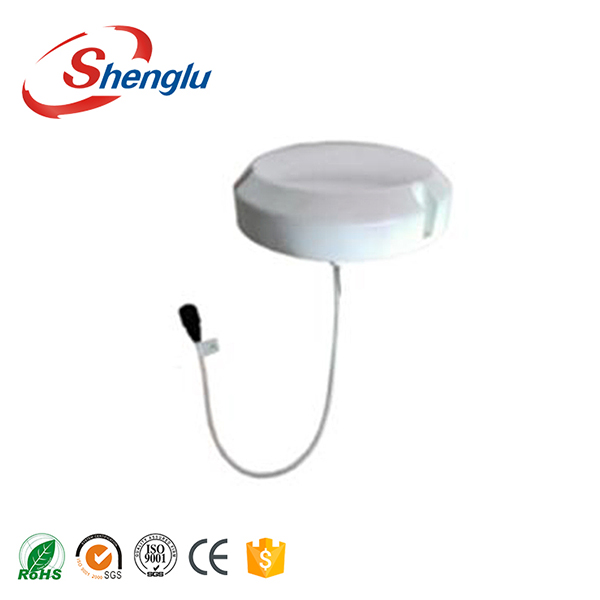

SL15988B SISO Omnidirectional Antenna
Port Port1
Frequency range (MHz) 698 - 800 800-960 1710 - 2700 3300 - 3800
Polarization Vertical
VSWR ≤ 1.8
Gain (dBi) 3 4 5 4
Horizontal half-power beam width (°) 360
Vertical half-power beam width (°) 90 85 65 55
PIM, 3rd Order (dBc) ≤-153 ( 2 x 43 dBm )
Average power, maximum (W) 50
Impedance (Ω) 50
Grounding DC Ground
-
Description
