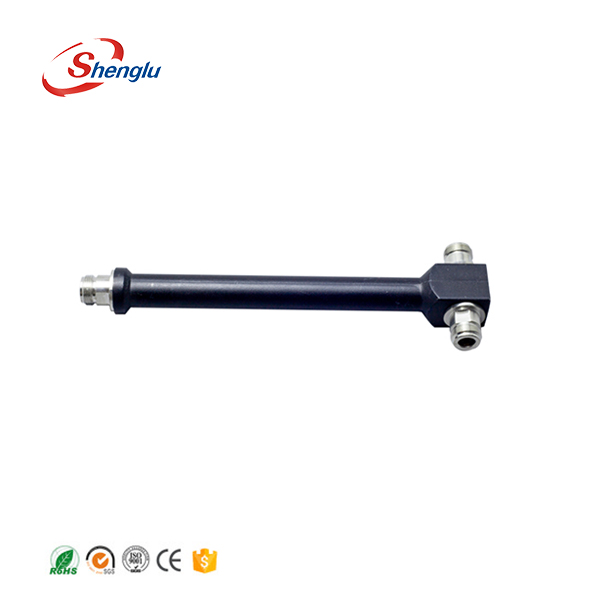

SL21501A
Wide Frequency Band 694-2700MHz
Low Passive Intermodulation(-150dBc)
Low VSWR & Insertion Loss
Indoor & Outdoor Application, IP66
Widely used for In-buildingSolutions
Freq(MHz) 694-2700
Input 2-way
Split Loss(dB) 3.0
Ripple In Band (dB) ≤0.3
VSWR ≤1.20
PIM(dBc) ≤-150dBc@2*43dBm
Power(W) 200 (average)
Impedance 50 ohm
Connector N-female
Color Black
Temp(deg) -40~+65
Application Indoor or Outdoor, IP66
Dimensions 196.5mm*25mm*25mm
Low Passive Intermodulation(-150dBc)
Low VSWR & Insertion Loss
Indoor & Outdoor Application, IP66
Widely used for In-buildingSolutions
Freq(MHz) 694-2700
Input 2-way
Split Loss(dB) 3.0
Ripple In Band (dB) ≤0.3
VSWR ≤1.20
PIM(dBc) ≤-150dBc@2*43dBm
Power(W) 200 (average)
Impedance 50 ohm
Connector N-female
Color Black
Temp(deg) -40~+65
Application Indoor or Outdoor, IP66
Dimensions 196.5mm*25mm*25mm
-
Description
