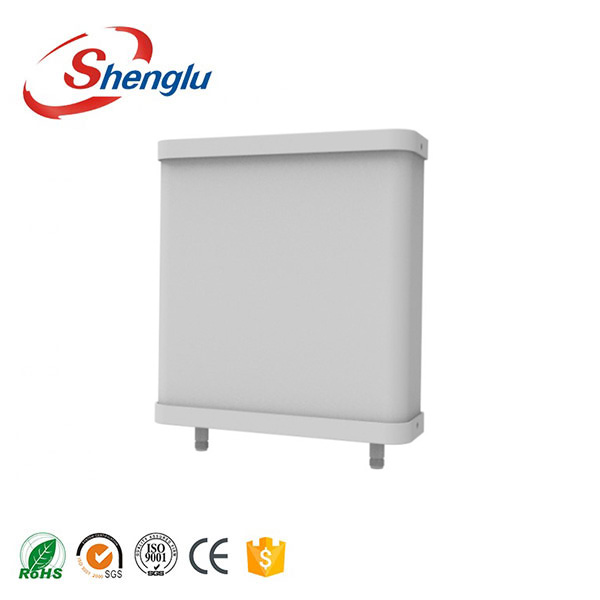

SL12113B
Model NO. SL12113B
Frequency range (MHz) 1710-2200 2200-2700
Polarization ±45°
VSWR ≤ 1.5
Gain (dBi) 14 15
Horizontal half-power beam
width (°) 35 30
Vertical half-power beam
width (°) 35 30
Side lobe suppression (dB) ≥20 ≥20
Cross polar ratio (dB) ≥20 ≥20
Front to Back Ratio (dB) ≥25 ≥25
Isolation (dB) ≥28 ≥28
PIM, 3rd Order (dBc) ≤ -150 (2 x 43 dBm carrier)
Average power, maximum
(W) 100
Impedance (Ω) 50
Grounding DC Ground
-
