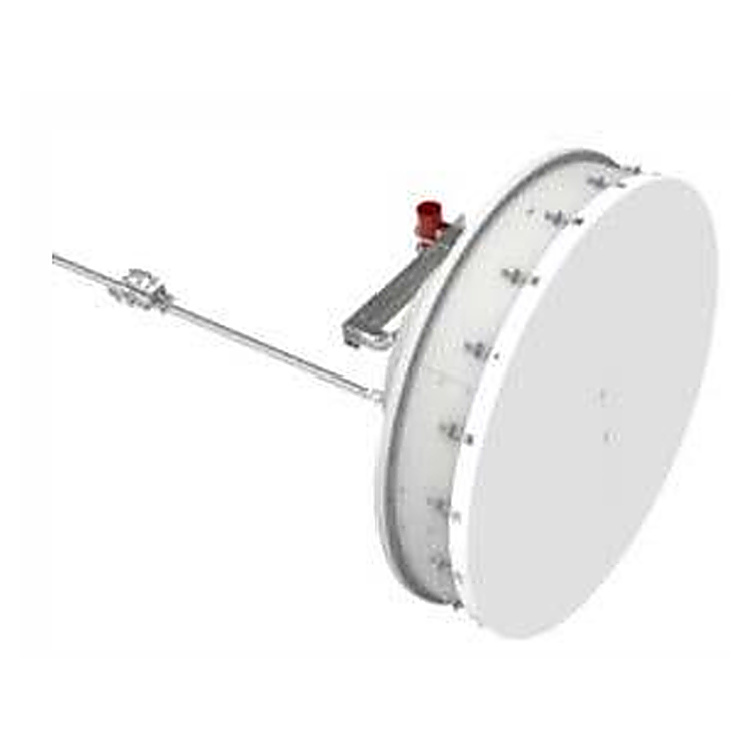

2.4m Ultra High Performance Antenna Single-polarized

Electrical Specifications
Frequency (GHz) 12.75~13.25
Polarization Single(V or H)
Gain , Low(dBi) 47.5
Gain, Mid(dBi) 47.7
Gain, Top(dBi) 47.8
Beam Width 0.7°
Cross-pol. Discrimination_XPD (dB) 30
F/B Ratio (dB) 73
VSWR / RL (dB) 1.3/17.7
Regulatory Compliance ETSI EN 302217 Range 1 Class 3

  • Description
